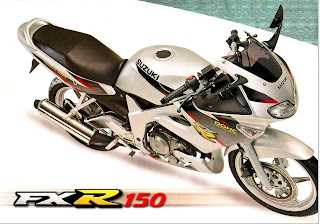

| Suzuki FXR 150 |
Specification:
DIMENSION AND DRY MASS
Overall length: 1,985 mm (78.1 in.)
Overall width: 665 mm (26.2 in.)
Overall height: 1080 mm (43.1 in)
Wheelbase: 1,325 mm (52.2 in.)
Seat height: 760 mm (29.9 in.)
Ground clearance: 160 mm (6.3 in.)
Dry mass: 118 kg (260 lbs)
Overall length: 1,985 mm (78.1 in.)
Overall width: 665 mm (26.2 in.)
Overall height: 1080 mm (43.1 in)
Wheelbase: 1,325 mm (52.2 in.)
Seat height: 760 mm (29.9 in.)
Ground clearance: 160 mm (6.3 in.)
Dry mass: 118 kg (260 lbs)
ENGINE
Type: Four-stroke single, Oil-cooled, DOHC, TSCC
Maximum power: 20 hp (14,9 kW)/ 9,900 rpm
Maximum torque: 12,5 Nm (1,27 kg-m)/ 8,100 rpm
Bore: 62,0 mm (2441 in.)
Stroke: 48,8 mm (1.921 in.)
Displacement: 147 cc (8.99 cu. in.)
Corrected compression ratio: 10,7 :1
Carburetor: MIKUNI BS29
Air cleaner: Polyurethane foam element
Starter system: Electric and Kick
Lubrication: Wet sump
TRANSMISSIONClutch: Wet multi-plate type
Transmission: 6-speed constant mesh
Gearshift pattern: 1 down 5 up
Primary reduction ratio: 3.500 (70/20)
Final reduction ratio: 3.428 (48/14)
Gear ratios, Low: 3.000 (33/11)
2nd : 1.857 (26/14)
3nd : 1.368 (26/19)
4th : 1.095 (23/21)
5th : 0.923 (24/26)
Top : 0.800 (20/25)
Drive chain: RK 428HO, 132 links
CHASSIS
Front suspension: Telescopic, coil spring, oil damped
Rear suspension: Swinging arm, coil spring, oil damped, spring pre-load 4-way adjustable
Steering angle: 35 degrees (right & left)
Caster: 24 degrees
Trail: 85 mm (3.35 in.)
Turning radius: 2,6 m (8.5ft)
Front brake: Disc brake
Rear brake: Disc brake
Front tire size: 80/90 - 17 44S, tube
Rear tire size: 100/90 - 17 55S, tube
ELECTRICAL
Ignition type: Electronic ignition (CDI)
Ignition timing: 9 degree B.T.D.C. at 1500 r/min
Spark plug: NGK CR8E or DENSO U24ERS-N
Battery: 12V 14.4kC (4Ah)/10 HR
Generator: Flywheel magneto
Fuse: 20A
Headlight: 12V 25/25W x 2
Turn signal light: 12V 10W
Brake light/taillight: 12V 18/5W
Speedometer light: 12V 1.7W x 2
Turn signal indicator light: 12V 1.7W x 2
Neutral indicator light: 12V 1.7W
High beam indicator light: 12V 1.7W
CAPACITIES
Fuel tank, including reserve: 15 liter (4.0/3.2 US/lmp gal)
reserve : 3,4 liter (0.9/0.8 US/lmp gal)Engine oil, without filter change : 1,000 ml (1.1/0.9 US/lmp qt)
with filter change : 1,100 ml (1.2/1.0 US/lmp qt)Download Service Manual V3:
http://www.ziddu.com/download/20382257/Suzuki-FXR-150-Service-Manual-Repair.pdf.html
