Suzuki Address V100


General information
Model:
Suzuki Address V100
Year:
2005
Category:
Scooter
Rating:
Engine and transmission
99.00 ccm (6.04 cubic inches)
Engine type:
Single cylinder, two-stroke
Power:
8.04 HP (5.9 kW))
11.00 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 3300 RPM
Cooling system:
Air
Transmission type,
final drive:
Belt
Chassis, suspension, brakes and wheels
Frame type:
Under bone
Physical measures and capacities
Dry weight:
85.0 kg (187.4 pounds)
Power/weight ratio:
0.0946 HP/kg
1,240 mm (48.8 inches)
Fuel capacity:
6.00 litres (1.59 gallons)
Other specifications
Comments:
Model for the Japanese marked.
Further information
Parts and accessories
Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questions
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes
List related bikes for comparison of specs

Suzuki Belang R150

Engine type -------- 4-stroke, air-cooled, DOHC
Bore (mm) --------62.0
Stroke (mm) -------- 48.8/td>
Piston displacement (cm?) --------   147
Compression ratio -------- 10.2 : 1
Carburetor --------- MIKUNI BS26SS
Starter system --------- Electric & kick starter
Lubrication system -------- Wet sump
Clutch -------- Wet, multi-plate type
Transmission --------- 6-speed
Drive system --------- RK428HSB, 120 links
Front suspension ---------- Telescopic, coil spring, oil-damped
Rear suspension ---------- Swingarm type, coil spring, oil-damped
Front brake ------- Disc brake
Rear brake ------- Disc brake
Front tire size -------- 70/90- 17 M/C 38P tube type
Rear tire size -------- 80/90- 17 M/C 44P tube type
Ignition type -------- Electronics ignition (CDI)
Spark Plug -------- CR8E or DENSO U24ESR-N
Battery ------- 12V 20.5KC (5.7AH) / 10HR
Headlight --------- 12V 32/32W + 18/18W
Fuel tank -------- 4.9 litres
Engine oil -------- Without filter change - 1,000ml
With filter change -------- 1,100ml
Overall length -------- 1,960 mm
Overall width -------- 650 mm
Overall height -------- 980 mm
Wheel base -------- 1,280 mm
Kerb Weight ------- 108 kg

Download Recommended Part Catalog:

Honda Wave 100

Honda Wave 100 (NF100) specifications:


ENGINE
Engine Type: 4 Stroke, SOHC, air-cooled
Bore & Stroke: 50.0mm x 49.5 mm
Displacement: 97.1 cc
Compression Ratio: 9.0:1
Engine Starter System: Kick Starter/Electric Starter
Lubricating Oil Capacity: 0.7 liter (After Draining) / 0.9 liter (After Disassembly)
Spark Plug: NGK C6HSA / DENSO U20FS (standard), NGK C7HSA / DENSO U22EPR9 (extended high speed riding)
Spark Plug Gap: 0.6 - 0.7 mm (0.024 - 0.028 in)
Valve Clearance: Intake 0.05mm (0.002 in), Exhaust 0.05mm (0.002 in) *Idle speed 1.400 +- 100 min (rpm)



POWER TRANSMISSION
Clutch : Wet multi-plate centrifugal
Transmission : 4 speed rotary shift
Gear Ratio: 1st Gear 2.833 (34/12), 2nd Gear 1.705 (29/17), 3rd Gear 1.238 (26/21), 4th Gear 0.958 (23/24) ;
                  Primary Reduction Ratio 4.058 (69/17), Final Reduction Ratio 2.571 (36/14)



ELECTRICAL
Ignition: CDI
Battery: 12V-2.5AH (Kick) / 12V-3.5AH (Electric)
Fuse: 10A



DIMENSIONS
Overall Length: 1907mm (wave100) / 1915mm (wave100R)
Overall Width: 699mm (wave100) / 705mm (wave100R)
Overall Height: 1066mm (wave100) / 1076mm (wave100R)
Wheelbase: 1234mm
Dry Weight: 106kg
Min Ground Clearance: 150mm
Seat Height: 743mm



CHASSIS
Frame: Backbone
Suspension: Telescopic fork (front) / Swingarm (rear)
Fuel Capacity: 3.7 liter
Trail: 69.4mm (wave100) / 73.1mm (wave100R)
Front Brake System: Drum (wave100) / Disc (wave100R)
Rear Brake System: Drum (wave100) / Drum (wave100R)
Tyre Measurement: (Front Tyre) 60/100-17M/C 33P (wave100) / 70/100-17M/C 40P (wave100R)
                           (Rear Tyre) 70/90-17M/C 43P (wave100) / 80/90-17M/C 50P (wave100R)



PERFORMANCE
Maximum Horse Power: 8.9PS / 8000rpm (DIN)
Maximum Torque: 0.93kgf.m / 6000rpm (DIN)

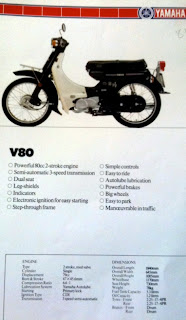

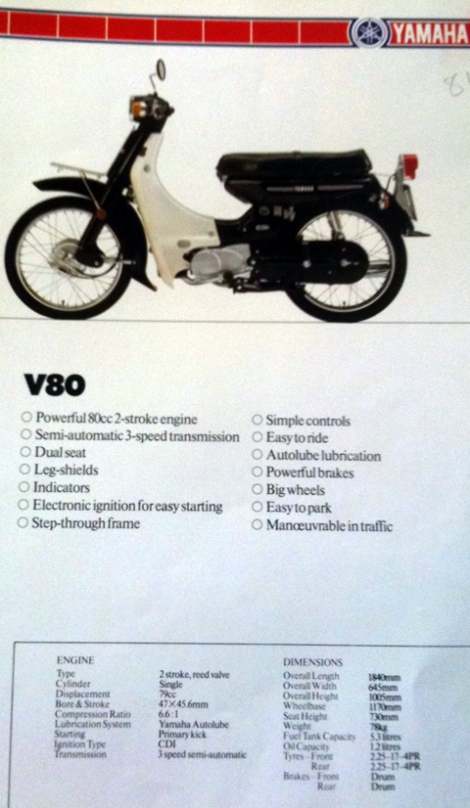

Yamaha V80


Download Part Catalog Manual:

Yamaha RX-S




Technical Specifications

Engine

Engine type
Displacement
Bore x stroke
Compression ratio
Maximum power
Maximum torque
Lubrication
Starting system
Transmission
Final transmission
Carburetion
Ignition type

2-stroke, torque induction, single
115 cc
54.0 x 50.0 mm
6.6:1
15.5 PS @8,500 rpm
1.35 kg-m @8,000 rev
autolube
kick starter
5-speed
Chain drive
VM22
CDI
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Seat height
Dry weight
Ground clearance
Oil tank capacity
Fuel tank capacity
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)
1,950 mm
745 mm
1,035 mm
1,240 mm
780 mm
94 kg
155 mm
1.3 L
9.0 L
Telescopic fork
swing arm
2.50-18-4PR
2.75-18-4PR
single disc
Drum


Suzuki RGV120




Suzuki RGV120 spec
Suzuki RGV120
Specifications
PERFORMANCE
Maximum Horse Power 15.5p.s. at 8,000 rpm
Maximum Torque 1.50kgfm at 7,000 rpm
ENGINE
Type 2-stroke, forced air-cooled
Intake System Reed Valve
Number of Cylinder 1
Bore x Stroke 56.0mm x 40.0mm
Piston Displacement 120.7 cm3
Corrected Compression Ratio 7.0:1
Carburettor Mikuni VM 20SS, Single
Starter System Primary Kick
Lubrication System Suzuki "CCI"
TRANSMISSION
Clutch Wet multi-plate type
Transmission 6-Speed
Gearshift Pattern 1 Down, 5 Up
Final Drive #428 chain, 128 links
CHASSIS
Front Suspension Telescopic, Coil Spring, Oil Damped
Rear Suspension Suzuki Adjustable Monoshock Swingarm, Oil damped
Front Brake Disc brake, hydraulically operated
Rear Brake Internal Expanding
Front Tyre Size 70/90 - 17 4PR
Rear Tyre Size 80/90 - 17 4PR
CAPACITY
Fuel Tank Including Reserve 5.2 L
Engine Oil Tank 1.0 L
Transmission Oil 1050 ml
ELECTRICAL
Battery 12V, 10.8KC (3AH) / 10HR
Headlight 12V, 25 W / 25 W
Ignition System DC - CDI


RGX120 spec
Engine     2 stroke, single cylinder, air cooling.
Bore x Stroke    56 x 49 mm
Displacement    120.7 cm3
Compression    7.0:1
Carburettor    MIKUNI VM 20 SS
Starter    Kick
Lubrication system    SUZUKI "CCI"
Transmission    6 speed
Drive Chain    D.I.D. 428 or TAKASAGO RK 428M 128 sprockets
Front Suspension    Telescopic with coil spring, oil damped
Rear Suspension    Swing arm, coil spring, oil damped
Brake (Front/Rear)    Disc, hydraulics
Tyre (Front)    70/90 - 17 4PR
Tyre (Rear)    80/90 -17 4PR
Ignition    DC C.D.I
Spark plug    NGK BP8ES
Battery    12V 10.8 KC (3 AH)/10 HR
Fuel Tank Capacity    5.2 L
Engine Oil Capacity    1.0 L
Dimension (mm)
   1960 X 710 X 1040
Wheelbase (mm)    1244
Net Weight (kg)    101


==============
BEARING NUMBER
==============

CRANKSHAFT           6205
TAYAR BELAKANG     6301
TAYAR DEPAN          6300

===============
CARB SIZE (ORI)
===============
RGS   18MM
RGV   20MM
RGX   20MM

===============
SPOCKET SIZE
===============
13, 42

Honda EX5 Dream


Honda EX5 Dream
Live out your EXtraordinary dream!ENGINE
Type
Air-cooler, 4 cycle engine OHC
Bore & Stroke
50 x 49.5mm
Engine Displacement
97.1cc
Compression Ratio
9:1
Starter System
Kick Starter
Electric Starter
Lubricant Capacity
0.9 liter
TRANSMISSION
Clutch
Automatic and wet multi-disc
Delivery
Continuous 4-speed transmission
GEAR RATIO
First Gear
2.833 (34/12)
Second Gear
1.705 (29/17)
Third Gear
1.238 (26/21)
Fourth Gear
0.958 (34/24)
Primary Reduction Ratio
4.058 (69/17)
Final Reduction Ratio
2.571 (36/14)
ELECTRICAL
Ignition System
CDI
Battery
12V-4AH (Kick Starter)
12V-5AH (Electric Starter)
DIMENSIONS
Overall Length
1,833mm
Overall Width
672mm
Overall Height
1,033mm
Wheel Base
1,183mm
CHASIS
Type
Spine
Front Suspension Travel
Telescopic 100mm
Back Suspension Travel
Swingarm 61mm
Fuel Tank Capacity
3.5 Liter
Front Tire Dimension
60/100 – 17M/C 33P
Back Tire Dimension
70/90 – 17M/C 38P
Caster Angle
26° 30’
Trail
75 mm
PERFORMANCE
Maximum Horsepower
8.9PS/ 8000rpm(DIN)
Torque Maximum
0.93kgf.m/6000rpm(DIN)

Suzuki FX125




Suzuki FX125 specifications
http://www.suzukicycles.org/gifs/3x3_transparent.gif
DIMENSION AND DRY MASS
http://www.suzukicycles.org/gifs/3x3_transparent.gifOverall length: 1955mm (77.0 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifOverall width: 680mm(26.8 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifOvervall height: 1080mm (42.5 in)
http://www.suzukicycles.org/gifs/3x3_transparent.gifWheelbase: 1275mm (50.2 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifSeat height: 760mm (29.9 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifGround clearance: 145mm (5.7 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifDry mass: 104kg (229 lbs.)
http://www.suzukicycles.org/gifs/3x3_transparent.gif
ENGINE
http://www.suzukicycles.org/gifs/3x3_transparent.gifType: Four-Stroke, Oil-cooled, DOHC, TSCC
http://www.suzukicycles.org/gifs/3x3_transparent.gifNumber of cylinders: 1
http://www.suzukicycles.org/gifs/3x3_transparent.gifBore: 57.0mm (2244 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifStroke: 48.8mm (1.921 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifDisplacement: 124.5(sm) (7.6 cu. in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifCorrected compression ratio: 10.4:1
http://www.suzukicycles.org/gifs/3x3_transparent.gifCarburetor: MIKUNI BS26SS
http://www.suzukicycles.org/gifs/3x3_transparent.gifAir cleaner: Polyurethane foam element
http://www.suzukicycles.org/gifs/3x3_transparent.gifStarter system: Electric and Kick
http://www.suzukicycles.org/gifs/3x3_transparent.gifLubrication: Wet sump
http://www.suzukicycles.org/gifs/3x3_transparent.gif
TRANSMISSION
http://www.suzukicycles.org/gifs/3x3_transparent.gifClutch: Wet multi-plate type
http://www.suzukicycles.org/gifs/3x3_transparent.gifTransmission: 5-speed constant mesh
http://www.suzukicycles.org/gifs/3x3_transparent.gifGearshift pattern: 1 down 4 up
http://www.suzukicycles.org/gifs/3x3_transparent.gifPrimary reduction ratio: 3.500 (70/20)
http://www.suzukicycles.org/gifs/3x3_transparent.gifFinal reduction ratio: 3.071 (43/14)
http://www.suzukicycles.org/gifs/3x3_transparent.gifGear ratios, Low: 2.750 (33/12)
http://www.suzukicycles.org/gifs/3x3_transparent.gif2nd: 1.785 (25/14)
http://www.suzukicycles.org/gifs/3x3_transparent.gif3nd: 1.368 (26/19)
http://www.suzukicycles.org/gifs/3x3_transparent.gif4th: 1.095 (23/21)
http://www.suzukicycles.org/gifs/3x3_transparent.gif5th: 0.913 (21/23)
http://www.suzukicycles.org/gifs/3x3_transparent.gifDrive chain: D.I.D. 428DS, 122 links
http://www.suzukicycles.org/gifs/3x3_transparent.gif
CHASSIS
http://www.suzukicycles.org/gifs/3x3_transparent.gifFront suspension: Telescopic, coil spring, oil damped
http://www.suzukicycles.org/gifs/3x3_transparent.gifRear suspension: Swinging arm, coil spring, oil damped
http://www.suzukicycles.org/gifs/3x3_transparent.gifSteering angle: 45 degrees (right & left)
http://www.suzukicycles.org/gifs/3x3_transparent.gifCaster: 24 degrees 45 degrees
http://www.suzukicycles.org/gifs/3x3_transparent.gifTrail: 60mm (2.36 in.)
http://www.suzukicycles.org/gifs/3x3_transparent.gifTurning radius: 2.6m (6.6ft)
http://www.suzukicycles.org/gifs/3x3_transparent.gifFront brake: Disk brake
http://www.suzukicycles.org/gifs/3x3_transparent.gifRear brake: Drum brake
http://www.suzukicycles.org/gifs/3x3_transparent.gifFront tire size: 70/90 - 17 38P, tube
http://www.suzukicycles.org/gifs/3x3_transparent.gifRear tire size: 80/90 - 17 44P, tube
http://www.suzukicycles.org/gifs/3x3_transparent.gif
ELECTRICAL
http://www.suzukicycles.org/gifs/3x3_transparent.gifIgnition type: Digital DC-CDI
http://www.suzukicycles.org/gifs/3x3_transparent.gifIgnition timing: 5 degree B.T.D.C. at 1500 r/min
http://www.suzukicycles.org/gifs/3x3_transparent.gifSpark plug: NGK CR8E or DENSO U24ERS-N
http://www.suzukicycles.org/gifs/3x3_transparent.gifBattery: 12V 14.4kC (4Ah)/10 HR
http://www.suzukicycles.org/gifs/3x3_transparent.gifGenerator: Flywheel magneto
http://www.suzukicycles.org/gifs/3x3_transparent.gifFuse: 20A
http://www.suzukicycles.org/gifs/3x3_transparent.gifHeadlight: 12V 30/30W
http://www.suzukicycles.org/gifs/3x3_transparent.gifTurn signal light: 12V 10W
http://www.suzukicycles.org/gifs/3x3_transparent.gifBrake light/taillight: 12V 18/5W
http://www.suzukicycles.org/gifs/3x3_transparent.gifSpeedometer light: 12V 1.7W
http://www.suzukicycles.org/gifs/3x3_transparent.gifTurn signal indicator light: 12V 1.7W
http://www.suzukicycles.org/gifs/3x3_transparent.gifNeutral indicator light: 12V 1.7W
http://www.suzukicycles.org/gifs/3x3_transparent.gifHigh beam indicator light: 12V 1.7W
http://www.suzukicycles.org/gifs/3x3_transparent.gif
CAPACITIES
http://www.suzukicycles.org/gifs/3x3_transparent.gifFuel tank: 4.6 L (1.2/1.0 US/lmp gal)
http://www.suzukicycles.org/gifs/3x3_transparent.gifEngine oil, without filter change: 1000ml (1.1/0.9 US/lmp qt)
http://www.suzukicycles.org/gifs/3x3_transparent.gifwith filter change: 1200ml (1.3/1.1 US/lmp qt)
http://www.suzukicycles.org/gifs/3x3_transparent.gifFront suspension oil (each fork): 55ml (2.2/1.9 US/lmp oz)”
